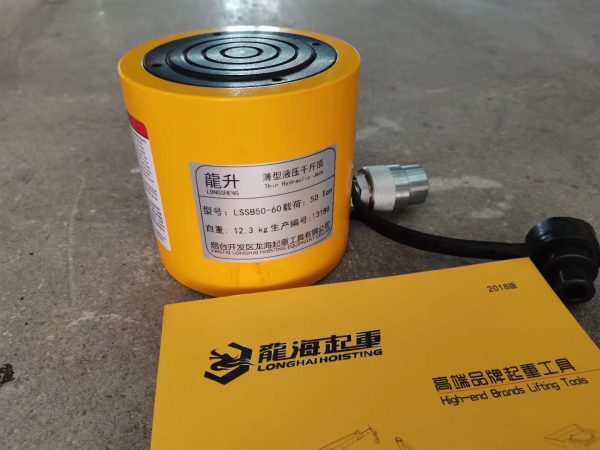

Single-acting Thin Separate Jack

	Rated Lifting Force:10-150 ton
	Brand:LONGSHENG®
	Warranty: 12 months

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Single-acting Thin Separate Jack -- LSSB

1.Ends of grooved plunger no need of saddle

2.Baked enamel finish for increased corrosion resistance

3.Single-acting, spring return

4.Some model have handle for easy carrying

5.All models are equipped with quick connector and dust cap.
6.In order to extend the life of our Single-acting Hydraulic Jack, increasing dust-proof ring.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Model	Capacity	Stroke L	Body height H	Outer diameter Y(X)	Hydraulic oil capacity	Cylinder rod diameter D1	Fuel tank internal diameter D2	NW
Model	(Ton)	(mm)	(mm)	(mm)	cm 3	(mm)	(mm)	(Kg)
LSSB10-38	10	38	88	72	55	35	45	4.6
LSSB20-45	20	45	97	92	139	50	63	5.4
LSSB30-64	30	64	118	105	290	60	76	6.6
LSSB50-60	50	60	120	129	471	80	100	10.2
LSSB100-57	100	57	134	176	877	112	140	24.5
LSSB150-51	150	51	141	215	1158	145	172	42.1
