Mechanical Jacks with Wheels

Mechanical Jacks with Wheels Capacity:3-10 ton
Brand:LONGSHENG®
Warranty: 6 months

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

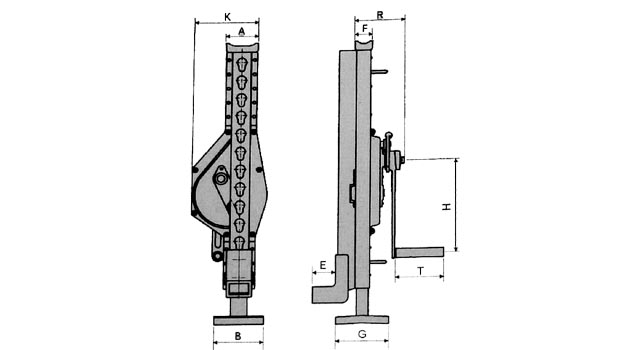

Structure of Mechanical Jacks with Wheels-LKD

Structure of Mechanical Jacks with Wheels

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Model LKD3-A LKD5-A LKD10-A
Capacity(T) 3 5 10
Test load(KN) 44.1 73.5 147
Fully loaded hand force(N) 350 400 580
Size(mm) A 83 108 124
B 130 140 140
E 60 71 86
F 45 68 76
G 138 170 170
H 249 275 300
K 170 190 252
R 140 155 185
T 128 128 250
NW(KG) 23.4 35.6 61
