Low Claw Mechanical Jacks
 |
Capacity:1.5-25 ton |
|
Brand:LONGSHENG® |
|
Warranty: 6 months |
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

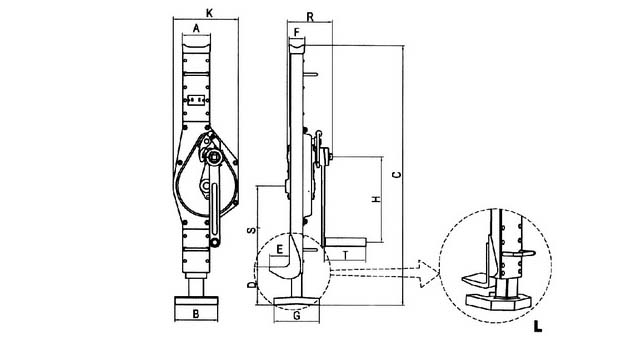

Structure of Low Claw Mechanical Jacks -DKD
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
|
Model |
DKD-1.5 |
DKD-3(L) |
DKD-5(L) |
DKD-10(L) |
DKD-16 |
DKD-20 |
DKD-25 |
|
Capacity(T) |
1.5 |
3 |
5 |
10 |
16 |
20 |
25 |
|
Test load(KN) |
16.5 |
33 |
55 |
110 |
176 |
220 |
275 |
|
Fully loaded hand force(N) |
190 |
196 |
235 |
431 |
580 |
650 |
750 |
|
Size(mm) |
A |
77 |
83 |
105 |
120 |
153 |
153 |
153 |
|
B |
100 |
130(165) |
145(200) |
145(220) |
150 |
150 |
198 |
|
C |
605-905 |
715-1085 |
730-1080 |
795-1160 |
820-1140 |
865-1180 |
950-1360 |
|
D |
55-355 |
60-430
(20-430) |
70-420
(30-420) |
83-448
(30-448) |
135-455 |
125-440 |
110-520 |
|
E |
55 |
60(50) |
70(60) |
80(75) |
85 |
85 |
85 |
|
F |
40 |
45 |
68 |
73 |
90 |
90 |
90 |
|
G |
110 |
135(130) |
170 |
170 |
182 |
182 |
230 |
|
H |
225 |
285 |
285 |
330 |
360 |
360 |
360 |
|
K |
121 |
200 |
190 |
252 |
275 |
275 |
388 |
|
R |
119 |
140 |
155 |
185 |
210 |
224 |
200 |
|
S |
185 |
230(270) |
220(280) |
220(280) |
202 |
202 |
205 |
|
T |
126 |
126 |
126 |
255 |
255 |
255 |
255 |
|
NW(KG) |
10.7 |
21.3(24.5) |
27(30) |
47(53) |
64.5 |
72 |
93 |
|
