100 Ton Hand Chain Hoists – HCH
 |
Capacity:100 ton |
| Lifting Hight：2.5 m | |
| Brand:LONGSHENG® | |
| Warranty: 12 months |
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
100 Ton Hand Chain Hoists – HCH
100 ton capacity hoist
1. Made up of four hand chain hoist.
2. Double the lifting speed，more efficient.
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ |
| Model | HCH-100 | |
| Capacity(T) | 100 | |
| Lifting Height (m) | 3 | |
| Test Load(T) | 150 | |
| Rated pulling force(N) | 400 | |
| No. of load chain | 31 | |
| Spec.of load chain(mm) | 11.2 | |

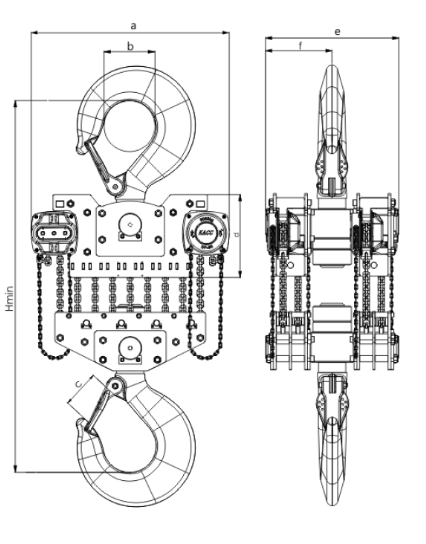

| Main Size | A | 1129 |
| B | 290 | |
| C | 250 | |
| E | 379 | |
| H min | 1921 | |
| Net weight(kg) | 1541 | |
| Weight of load chain(kg) | 86.4 | |
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
