PowerTowing® load movers

PowerTowing load movers Traction Capacity:1000 kg
Move Capacity:25000 kg
Brand:LONGSHENG®
Warranty: 6 months

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Operation diagram of PowerTowing® load movers:

Electric handling tractor operation diagram.jpg


PowerTowing®load movers product introduction:

Function: The PowerTowing load movers is used for auxiliary traction/moving of equipment handling.


Working principle: The PowerTowing load movers belongs to the intelligent auxiliary electric handling tool, which is driven by the motor to drive the traction and the principle of lever grip to achieve the purpose of use.


Working capacity: the traction force of a single unit is 1000kg, and it can push/tow 25 tons of equipment or heavy objects (need to be used together with the machine skates). According to the needs of use, two or more PowerTowing load moverss can be used to achieve greater push/traction to complete higher requirements for equipment handling operations.


Operation: When using the PowerTowing load movers to work, one person can complete all the operations, which truly saves manpower and reduces costs.


Use environment: The PowerTowing load movers is used on flat concrete, asphalt ground (tar macadam), epoxy ground, terrazzo ground, industrial ground and the environment where the load is guaranteed to meet the product requirements.


Product quality guarantee: half of a year warranty for motors,5 years warranty for mechanical parts.


PowerTowing® load movers technical parameters:



model

ETB25-2

traction/thrust

kg

1000

Motor Power

In

1200

traction wheel diameter

mm

190

traction wheel width

mm

135

Number of traction wheels

indivual

2

rubber inflatable wheel diameter

mm

200

Rubber Inflatable Wheel quantity

indivual

2

Overall length

mm

1700

Power cord length

M

2.8

Voltage

V

220

Product Weight

kg

52

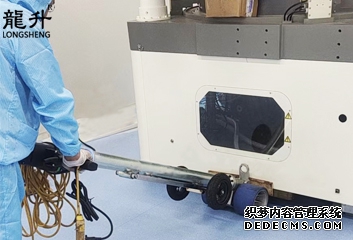

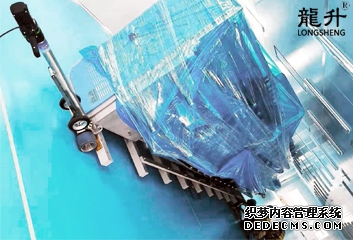

PowerTowing load movers usage diagram:

PowerTowing® load movers PowerTowing® load movers

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
