Spring Balancer - SW

Capacity:1-160 kg
Brand:LONGSHENG®
Warranty: 6 months

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Spring Balancer - SW

The principle:by means of coil springs energy savings,make the tools weightless,to reduce the labor intensity and improve production efficiency.Spring Balancer is mainly automobiles,tractors, appliances and machinery manufacturing welding and other fields.

1,Less fatigue and improving working efficiency.
2,Keeping a tool away from damage.
3,Safe works due to no electric power.
4,Accurate works and stable tool position.
5,SW-3 and SW-5 are with self-locking function,When the spring failure is happened,the fall prevention device will be activated and stop         the suspended tool device.

Spring Balancer Rail Assembly

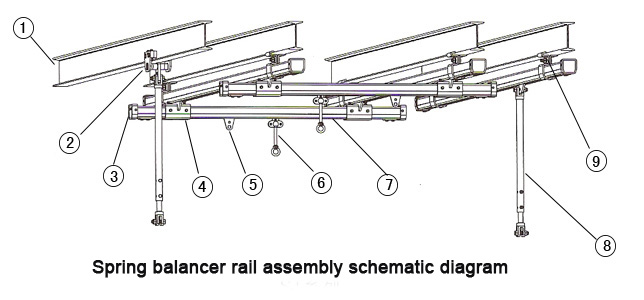

Spring balancer rail assembly schematic diagram


Spring balancer rail assembly parts - I-beam trolley
【2】I-beam trolley
Spring balancer rail assembly parts - End cap
【3】End cap
Spring balancer rail assembly parts - Guide trolley
【4】Guide trolley
Spring balancer rail assembly parts - Plate-type trolley
【5】Plate-type trolley
Spring balancer rail assembly parts - Ball-pivot trolley
【6】Ball-pivot trolley
Spring balancer rail assembly parts - Spring balancer Railway
【7】Railway
Spring balancer rail assembly parts - Hanger
【8】Hanger
Spring balancer rail assembly parts - E-type connector
【9】E-type connector
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Model Capacity(kg) Stroke(m) Net Weight(kg)
*SW-3 1-3 3 1.5
*SW-5 3-5 3 1.5
SW-9 5-9 1.5 4.9
SW-15 9-15 1.5 5.1
SW-22 15-22 1.5 7.4
SW-30 22-30 1.5 8
SW-40 30-40 1.5 10.3
SW-50 40-50 1.5 10.8
SW-60 50-60 1.5 11
SW-70 60-70 1.5 11.2
SW-80 70-80 1.5 11.5
SW-100 80-100 1.5 21.8
SW-120 100-120 1.5 22.2
SW-140 120-140 1.5 22.6
SW-160 140-160 1.5 23
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
