Hydraulic Toe Jacks -LH12

Hydraulic Toe Jacks Capacity:2-50 ton
Brand:LONGSHENG®
Warranty: 24 months

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

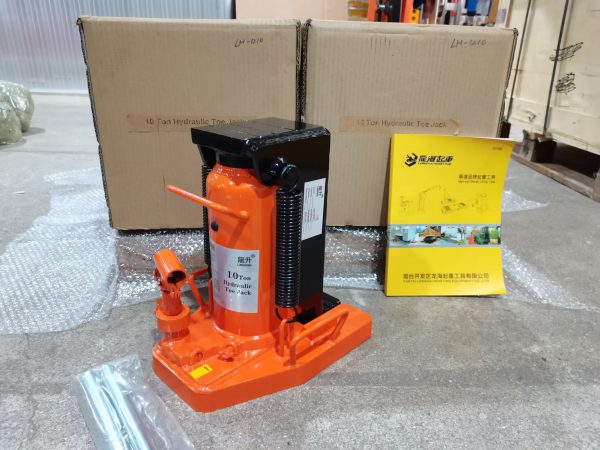

Hydraulic Toe Jacks -LH12
Hydraulic Toe Jacks
1,"Overload Protection",absolutely safe.
2,Compliance with the ASME B30.1 of U.S.A.
3,Each Unit is equipped with a Piston Retraction Spring Power, the fastest rate of decline in
   the fall,saving time.
4,The surface of piston is protected by Chrome,protect the seal from oil spilling.
5,Circuit Boards is independent of the toe plate and can be replaced without demaging the
   toe plate,it is much more convinient to repair.
6,The claw(toe) is Integrally molded,much more stronger than the welding.
7,Not suitable for prolonged loading.

Details

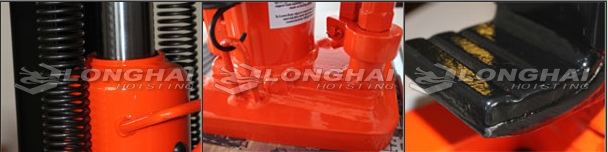

Hydraulic Toe Jacks Piston Retraction Spring Power Independent Circuit Boards Integrally Molded Toe
Piston Retraction Spring Power Independent Circuit Boards   Integrally Molded Toe
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Model CapacityToe/Top
(T)
Minimum Height
of
the Toe
(mm)
Max Height
of
the Toe
(mm)
Body Height
(mm)
Max Height
of the Top
(mm)
Toe Size
(mm)
Base Size
(mm)
NW
(KG)
LH-1202 2/5 17 132 235 350 50x50 178x125 8.5
LH-1205 5/10 27 147 293 413 75x57 270x183 22.5
LH-1210 10/20 31 176 327 472 84x60 287x240 37.5
LH-1230 15/30 31 196 345 510 100*70 300*250 48.5
LH-1250 25/50 40 150 400 545  140*68  350*278 85

The Similar Products:

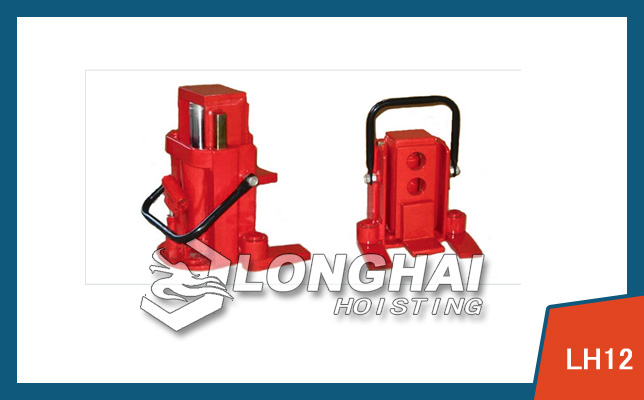

Hydraulic Toe Jacks in Germany Style Toe Jacks Low Hydraulic Toe Jack
