Ultra Low Headroom Manual Chain Hoist

	Capacity:1-20 ton
	Lifting Hight：3 m
	Brand:LONGSHENG®
	Warranty: 12 months

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

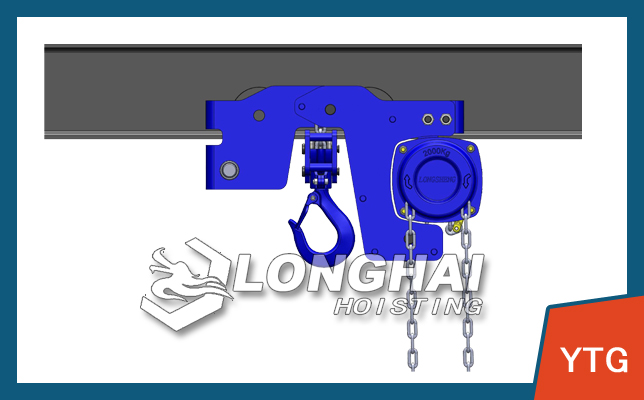

Ultra Low Headroom Manual Chain Hoist with Germany Style-YTG

Ultra Low Headroom Manual Chain Hoist is particular designed for use where space is limited.The hook is up to the track, realizing the maximum height in a limited space.

1. Extremely low headroom for use where space is limited.

2. Efficient hoist drivetrain is more flexible to operate.

3. Movement with low friction and long life.

4. All-steel construction for hoist durability.

Stock of Ultra Low Headroom Manual Chain Hoist with Germany Style

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Model		YTG-01	YTG-02	YTG-04	YTG-06	YTG-10	YTG-20
Capacity(t)		1	2	4	6	10	20
Lifting Height (m)		3	3	3	3	3	3
Chain pull to lift full load(n)		305	340	350	370	380	390
Test load (t)		1.25	2.5	4.75	6.75	12.5	25
Headroom-H(mm)		166	192	217	290	303	Customized
I-Beam(mm)		50-305	74-305	85-305	85-305	85-305	Customized
Min.radius curve (m)		1.1	1.2	1.3	1.4	1.6	Customized
Dimension (mm)	A	190	215	255	295	345	Customized
	B	407	471	552	641	693	Customized
	C	295	325	410	490	500	Customized
	D	67	70	91	134	257	Customized
	E	147	170	197	248	300	Customized
	F	88	88	200	200	300	Customized
